Create Private Instance

  1. Go to EC2 service management console
  • Click Instances.
  • Click Launch instances.

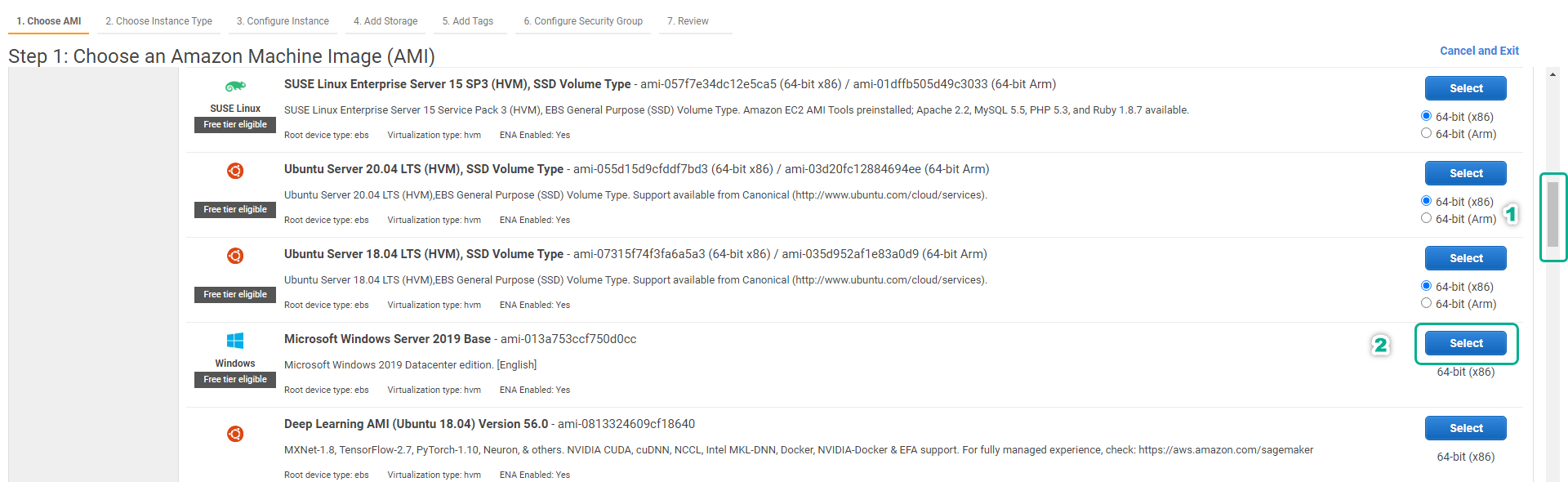

  1. On the Step 1: Choose an Amazon Machine Image (AMI) page.
  • Drag the mouse down.
  • Click Select to select AMI Microsoft Windows Server 2019 Base.

EC2

  1. On the Step 2: Choose an Instance Type page.
  • Click on Instance type t2.micro.
  • Click Next: Configure Instance Details.

EC2

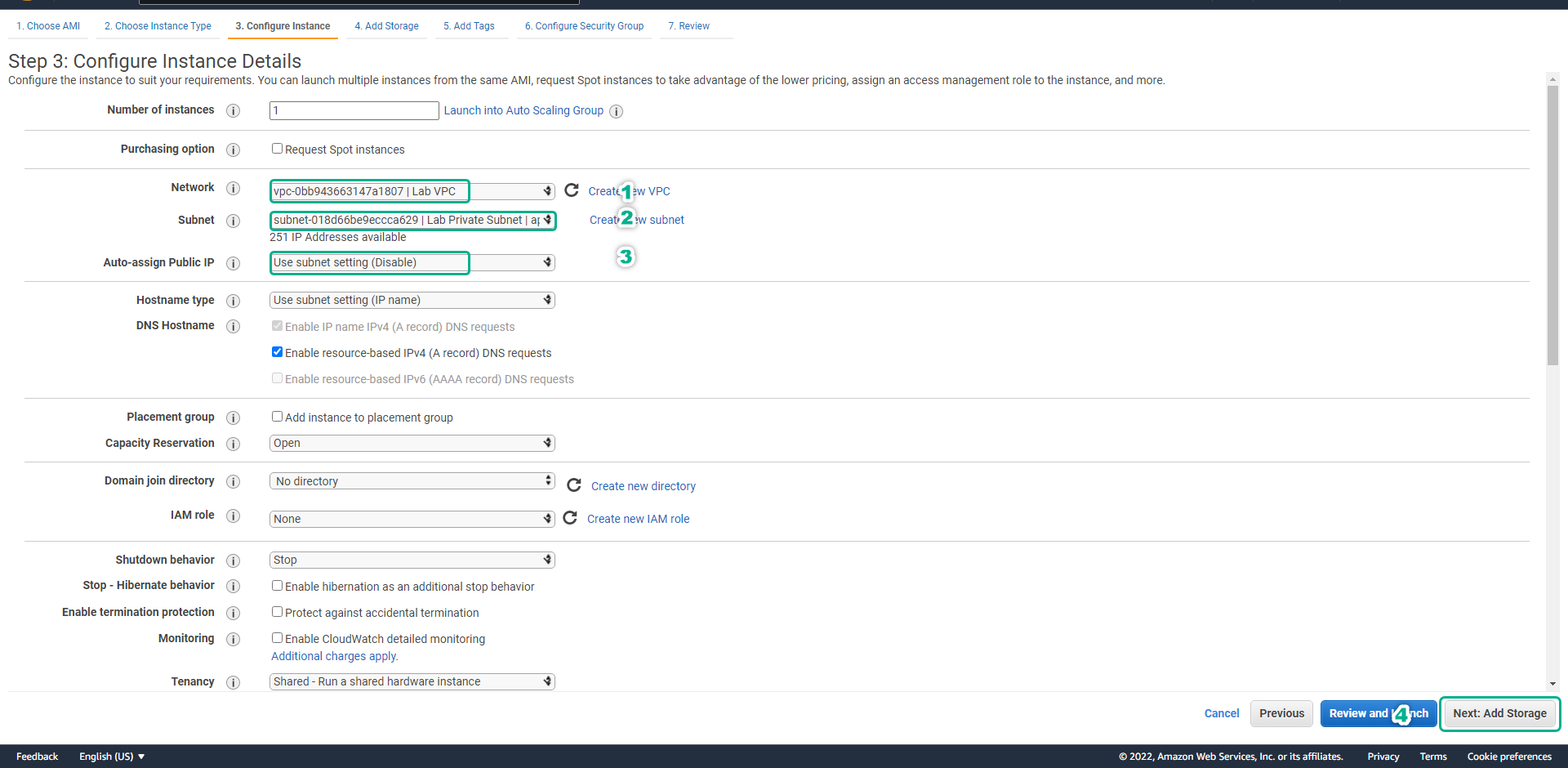

  1. At Step 3: Configure Instance Details page
  • In the Network section, select Lab VPC.
  • In the Subnet section, select Lab Private Subnet.
  • At Auto-assign Public IP select Use subnet setting (Disable)
  • Click Next: Add Storage.

EC2

  1. Click Next: Add Tags to move to the next step.
  • Click Next: Configure Security Group to move to the next step.

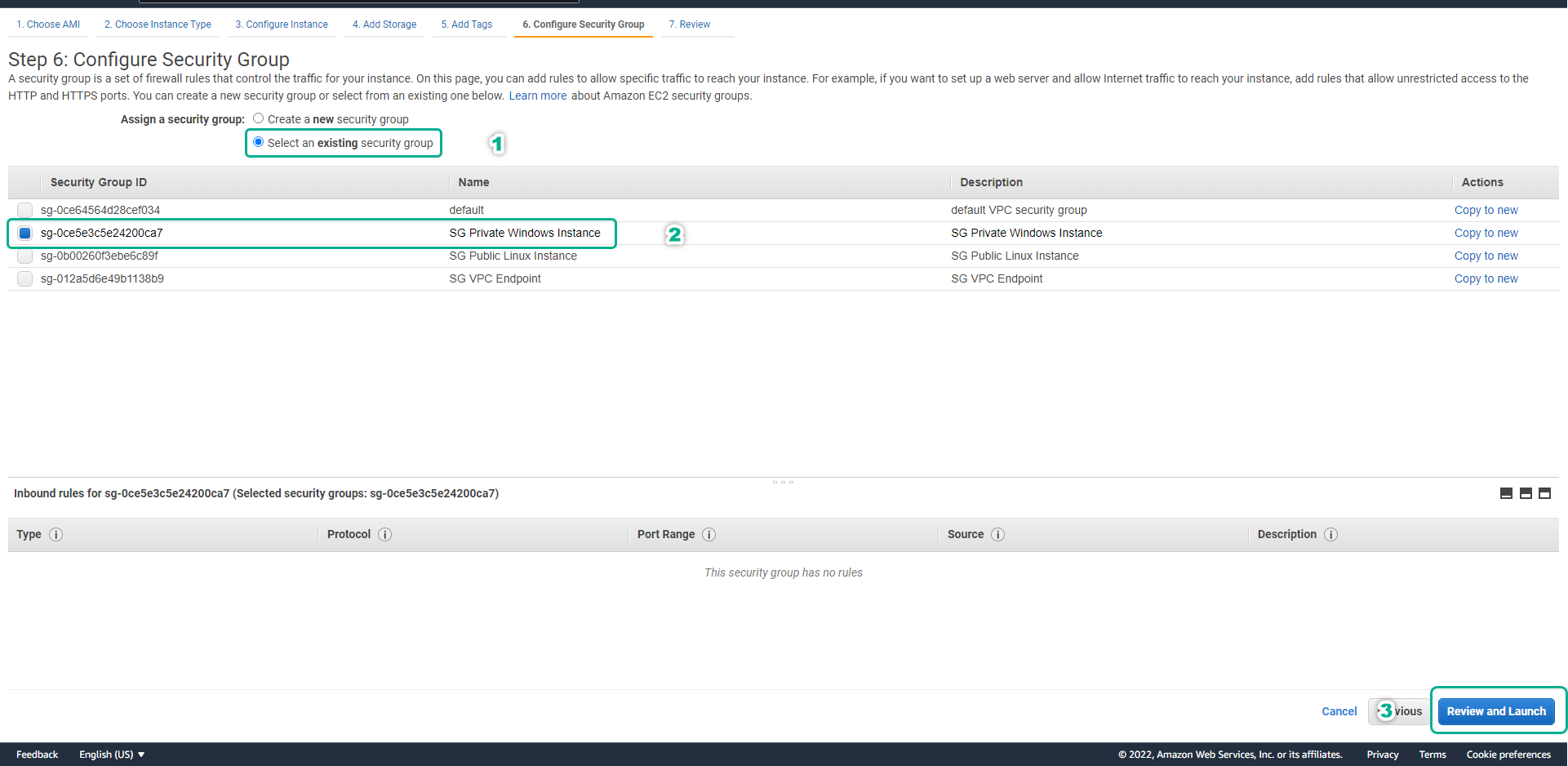

  1. On page Step 6: Configure Security Group.
  • Select Select an existing security group.
  • Select security group SG Private Windows Instance.
  • Click Review and Launch.

EC2

  1. The warning dialog box appears because we do not configure the firewall to allow connections to port 22, Click Continue to continue.

  2. At page Step 7: Review Instance Launch.

  • Click Launch.
  1. In the Select an existing key pair or create a new key pair dialog box.
  • Click Choose an existing key pair.
  • In the Key pair name section, select LabKeypair.
  • Click I acknowledge that I have access to the corresponding private key file, and that without this file, I won’t be able to log into my instance..
  • Click Launch Instances to create EC2 server.
  1. Click View Instances to return to the list of EC2 instances.

  2. Click the edit icon under the Name column.

  • In the Edit Name dialog box, enter Private Windows Instance.
  • Click Save.

EC2

Next, we will proceed to create IAM Roles to serve the Session Manager.
