Integrate UserDeleteHandler

Table of Content

Add CDK code for integration

  • In the CDK stack file (cdk-workshop-stack.ts), inside the constructor and below code for integrating with UsersUpdateHandler, add the following code:

    // Resource /users/{userId} - DELETE method
const userDeleteIntegration = new LambdaIntegration(userDeleteHandler, {
  proxy: false,
  requestTemplates: {
    "application/json": `{ "id": "$input.params('userId')" }`,
  },
  integrationResponses: [{ statusCode: "204" }],
});
const userIdDelete = userIdResource.addMethod(
  "DELETE",
  userDeleteIntegration,
  {
    methodResponses: [{ statusCode: "204" }],
    requestParameters: {
      "method.request.path.userId": true,
    },
  }
);

[Optional] Run cdk diff to check the difference

  • Run cdk diff to compare local stack to deployed stack.

    cdk diff

    Output:

    start: Building CdkWorkshopStack Template
success: Built CdkWorkshopStack Template
start: Publishing CdkWorkshopStack Template (current_account-current_region)
success: Published CdkWorkshopStack Template (current_account-current_region)
Hold on while we create a read-only change set to get a diff with accurate replacement information (use --no-change-set to use a less accurate but faster template-only diff)

Stack CdkWorkshopStack
IAM Statement Changes
┌───┬──────────────────────────┬────────┬───────────────────────┬──────────────────────────────────┬─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│   │ Resource                 │ Effect │ Action                │ Principal                        │ Condition                                                                                                                                                   │
├───┼──────────────────────────┼────────┼───────────────────────┼──────────────────────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ + │ ${UserDeleteHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                                │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/${UsersAPI/DeploymentStage.prod}/DELETE/users/*" │
│   │                          │        │                       │                                  │ }                                                                                                                                                           │
│ + │ ${UserDeleteHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                                │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/test-invoke-stage/DELETE/users/*"                │
│   │                          │        │                       │                                  │ }                                                                                                                                                           │
└───┴──────────────────────────┴────────┴───────────────────────┴──────────────────────────────────┴─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘
(NOTE: There may be security-related changes not in this list. See https://github.com/aws/aws-cdk/issues/1299)

Resources
[-] AWS::ApiGateway::Deployment UsersAPI/Deployment UsersAPIDeploymentD3AE71F131f172fd77abff42b586693db143b8d3 destroy
[+] AWS::ApiGateway::Deployment UsersAPI/Deployment UsersAPIDeploymentD3AE71F1da787b0e22923f2d02fb73fd15a444cb
[+] AWS::Lambda::Permission UsersAPI/Default/users/{userId}/DELETE/ApiPermission.CdkWorkshopStackUsersAPI1B3B5CD1.DELETE..users.{userId} UsersAPIusersuserIdDELETEApiPermissionCdkWorkshopStackUsersAPI1B3B5CD1DELETEusersuserId0E8D92B1
[+] AWS::Lambda::Permission UsersAPI/Default/users/{userId}/DELETE/ApiPermission.Test.CdkWorkshopStackUsersAPI1B3B5CD1.DELETE..users.{userId} UsersAPIusersuserIdDELETEApiPermissionTestCdkWorkshopStackUsersAPI1B3B5CD1DELETEusersuserId1836D96D
[+] AWS::ApiGateway::Method UsersAPI/Default/users/{userId}/DELETE UsersAPIusersuserIdDELETEB98699CF
[~] AWS::ApiGateway::Stage UsersAPI/DeploymentStage.prod UsersAPIDeploymentStageprod08341ECA
 └─ [~] DeploymentId
     └─ [~] .Ref:
         ├─ [-] UsersAPIDeploymentD3AE71F131f172fd77abff42b586693db143b8d3
         └─ [+] UsersAPIDeploymentD3AE71F1da787b0e22923f2d02fb73fd15a444cb



✨  Number of stacks with differences: 1

Run cdk deploy to deploy your CDK stack

  • Run cdk deploy to deploy local stack to your AWS account.

    cdk deploy
    • Output:
    ✨  Synthesis time: 10.56s

Stack CdkWorkshopStack
IAM Statement Changes
┌───┬──────────────────────────┬────────┬───────────────────────┬──────────────────────────────────┬─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│   │ Resource                 │ Effect │ Action                │ Principal                        │ Condition                                                                                                                                                   │
├───┼──────────────────────────┼────────┼───────────────────────┼──────────────────────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ + │ ${UserDeleteHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                                │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/${UsersAPI/DeploymentStage.prod}/DELETE/users/*" │
│   │                          │        │                       │                                  │ }                                                                                                                                                           │
│ + │ ${UserDeleteHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                                │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/test-invoke-stage/DELETE/users/*"                │
│   │                          │        │                       │                                  │ }                                                                                                                                                           │
└───┴──────────────────────────┴────────┴───────────────────────┴──────────────────────────────────┴─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘
(NOTE: There may be security-related changes not in this list. See https://github.com/aws/aws-cdk/issues/1299)


Do you wish to deploy these changes (y/n)?

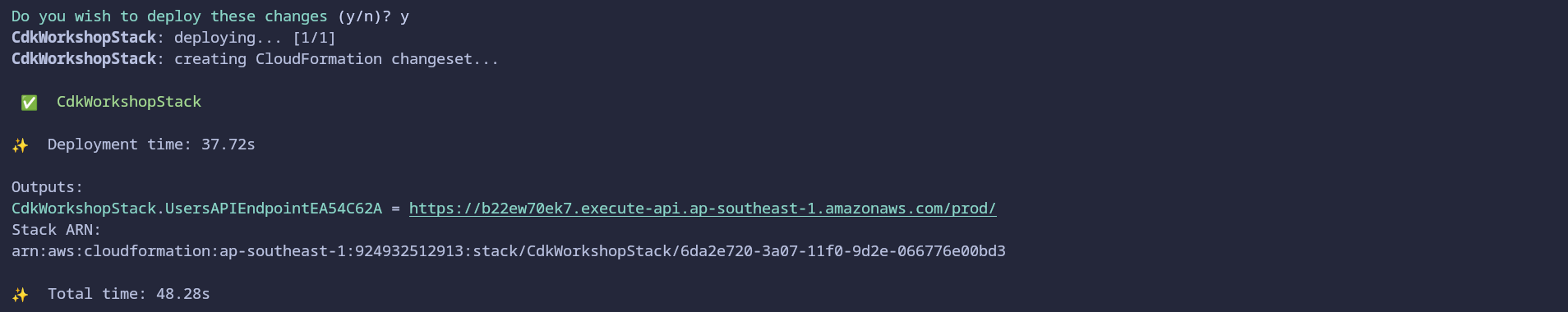

    • Type in y and press Enter to confirm.

      alt text

Test the API Gateway integration and method

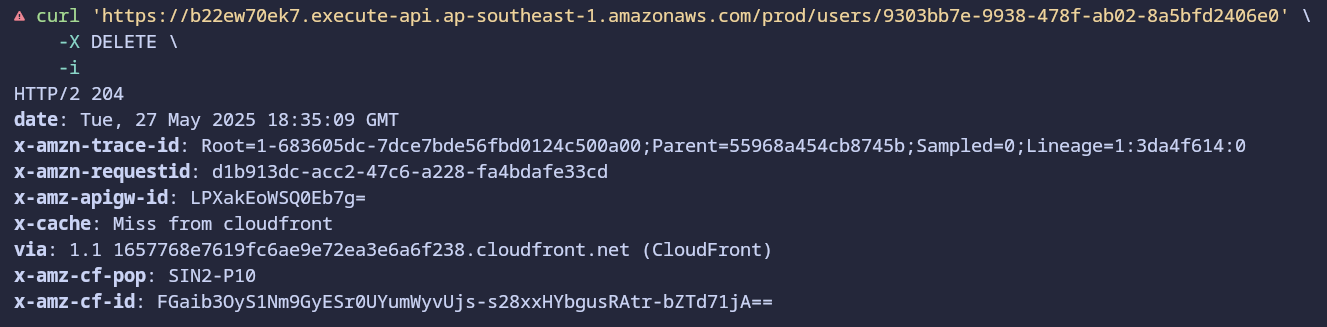

  • Verify that you can make a DELETE request to /users/{userId} path.

    curl 'https://b22ew70ek7.execute-api.ap-southeast-1.amazonaws.com/prod/users/9303bb7e-9938-478f-ab02-8a5bfd2406e0' \
  -X DELETE \
  -i

    Replace

    • the endpoint with yours and notice the /prod suffix of the endpoint.
    • the 9303bb7e-9938-478f-ab02-8a5bfd2406e0 with the id of the created user in previous step

    alt text
