Integrate UserUpdateHandler

Table of Content

Add CDK code for integration

  • In the CDK stack file (cdk-workshop-stack.ts), inside the constructor and below code for integrating with UsersGetHandler, add the following code:

    // Resource /users/{userId} - PATCH method
const userUpdateIntegration = new LambdaIntegration(userUpdateHandler, {
  proxy: false,
  requestTemplates: {
    "application/json": `
          #set($inputRoot = $input.path('$'))
          {
            #foreach($key in $inputRoot.keySet())
              "$key": "$util.escapeJavaScript($inputRoot.get($key))"#if($foreach.hasNext),#end
            #end,
            "id": "$input.params('userId')"
          }
        `,
  },
  integrationResponses: [{ statusCode: "200" }],
});
const userIdPatch = userIdResource.addMethod("PATCH", userUpdateIntegration, {
  methodResponses: [{ statusCode: "200" }],
  requestParameters: {
    "method.request.path.userId": true,
  },
});

[Optional] Run cdk diff to check the difference

  • Run cdk diff to compare local stack to deployed stack.

    cdk diff

    Output:

    start: Building CdkWorkshopStack Template
success: Built CdkWorkshopStack Template
start: Publishing CdkWorkshopStack Template (current_account-current_region)
success: Published CdkWorkshopStack Template (current_account-current_region)
Hold on while we create a read-only change set to get a diff with accurate replacement information (use --no-change-set to use a less accurate but faster template-only diff)

Stack CdkWorkshopStack
IAM Statement Changes
┌───┬──────────────────────────┬────────┬───────────────────────┬──────────────────────────────────┬────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│   │ Resource                 │ Effect │ Action                │ Principal                        │ Condition                                                                                                                                                  │
├───┼──────────────────────────┼────────┼───────────────────────┼──────────────────────────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ + │ ${UserUpdateHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                               │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/${UsersAPI/DeploymentStage.prod}/PATCH/users/*" │
│   │                          │        │                       │                                  │ }                                                                                                                                                          │
│ + │ ${UserUpdateHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                               │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/test-invoke-stage/PATCH/users/*"                │
│   │                          │        │                       │                                  │ }                                                                                                                                                          │
└───┴──────────────────────────┴────────┴───────────────────────┴──────────────────────────────────┴────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘
(NOTE: There may be security-related changes not in this list. See https://github.com/aws/aws-cdk/issues/1299)

Resources
[-] AWS::ApiGateway::Deployment UsersAPI/Deployment UsersAPIDeploymentD3AE71F1f87d0b07f7184c3208c494cf982ac317 destroy
[+] AWS::ApiGateway::Deployment UsersAPI/Deployment UsersAPIDeploymentD3AE71F131f172fd77abff42b586693db143b8d3
[+] AWS::Lambda::Permission UsersAPI/Default/users/{userId}/PATCH/ApiPermission.CdkWorkshopStackUsersAPI1B3B5CD1.PATCH..users.{userId} UsersAPIusersuserIdPATCHApiPermissionCdkWorkshopStackUsersAPI1B3B5CD1PATCHusersuserId1CE51411
[+] AWS::Lambda::Permission UsersAPI/Default/users/{userId}/PATCH/ApiPermission.Test.CdkWorkshopStackUsersAPI1B3B5CD1.PATCH..users.{userId} UsersAPIusersuserIdPATCHApiPermissionTestCdkWorkshopStackUsersAPI1B3B5CD1PATCHusersuserIdB30B161D
[+] AWS::ApiGateway::Method UsersAPI/Default/users/{userId}/PATCH UsersAPIusersuserIdPATCH066A04B4
[~] AWS::ApiGateway::Stage UsersAPI/DeploymentStage.prod UsersAPIDeploymentStageprod08341ECA
 └─ [~] DeploymentId
     └─ [~] .Ref:
         ├─ [-] UsersAPIDeploymentD3AE71F1f87d0b07f7184c3208c494cf982ac317
         └─ [+] UsersAPIDeploymentD3AE71F131f172fd77abff42b586693db143b8d3



✨  Number of stacks with differences: 1

Run cdk deploy to deploy your CDK stack

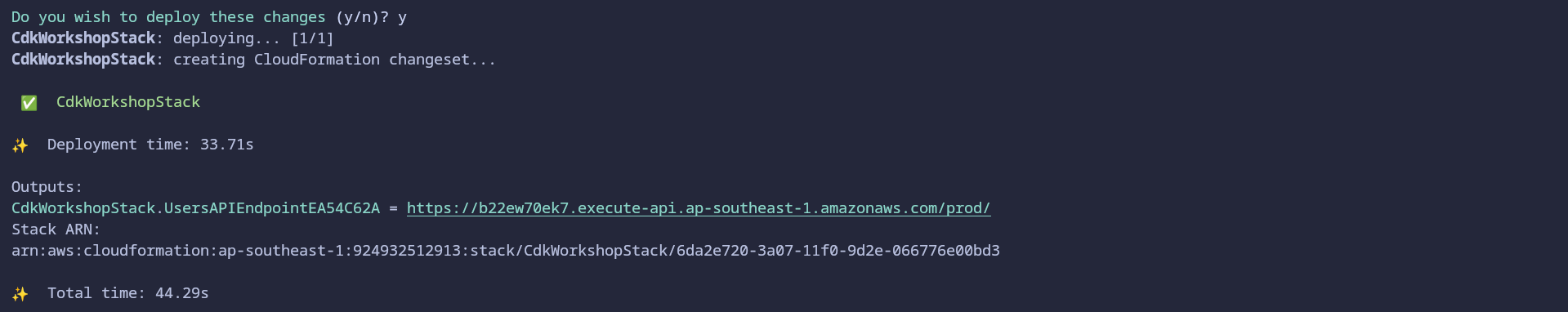

  • Run cdk deploy to deploy local stack to your AWS account.

    cdk deploy

    • Output:

      ✨  Synthesis time: 10.58s

Stack CdkWorkshopStack
IAM Statement Changes
┌───┬──────────────────────────┬────────┬───────────────────────┬──────────────────────────────────┬────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│   │ Resource                 │ Effect │ Action                │ Principal                        │ Condition                                                                                                                                                  │
├───┼──────────────────────────┼────────┼───────────────────────┼──────────────────────────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ + │ ${UserUpdateHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                               │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/${UsersAPI/DeploymentStage.prod}/PATCH/users/*" │
│   │                          │        │                       │                                  │ }                                                                                                                                                          │
│ + │ ${UserUpdateHandler.Arn} │ Allow  │ lambda:InvokeFunction │ Service:apigateway.amazonaws.com │ "ArnLike": {                                                                                                                                               │
│   │                          │        │                       │                                  │   "AWS:SourceArn": "arn:${AWS::Partition}:execute-api:${AWS::Region}:${AWS::AccountId}:${UsersAPIDF91FF81}/test-invoke-stage/PATCH/users/*"                │
│   │                          │        │                       │                                  │ }                                                                                                                                                          │
└───┴──────────────────────────┴────────┴───────────────────────┴──────────────────────────────────┴────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘
(NOTE: There may be security-related changes not in this list. See https://github.com/aws/aws-cdk/issues/1299)


Do you wish to deploy these changes (y/n)?

    • Type in y and press Enter to confirm.

      alt text

Test the API Gateway integration and method

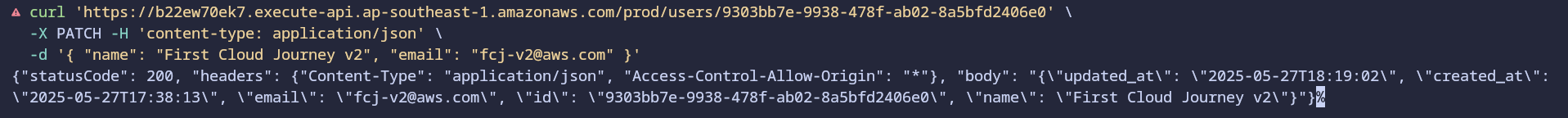

  • Verify that you can make a PATCH request to /users/{userId} path.

    curl 'https://b22ew70ek7.execute-api.ap-southeast-1.amazonaws.com/prod/users/9303bb7e-9938-478f-ab02-8a5bfd2406e0' \
  -X PATCH -H 'content-type: application/json' \
  -d '{ "name": "First Cloud Journey v2", "email": "fcj-v2@aws.com" }'

    Replace

    • the endpoint with yours and notice the /prod suffix of the endpoint.
    • the 9303bb7e-9938-478f-ab02-8a5bfd2406e0 with the id of the created user in previous step.

    alt text
